Free garage plans · 8 designs
Free garage plans. Every stud counted.
Each starting plan comes from the same designer: the slab and footing, the walls with their headers, the trusses, all checked against your snow and wind and priced line by line. Pick by the cars it holds, then change anything.
- Designing
- Free
- Builder's plan
- $79 once
- Account
- Not needed
Find the plan that fits your cars
How many cars?
Anything else inside?
It shows our closest starting plan for the cars and the extra you pick, not the size you need. The designer checks each door against the wall and the header, and each vehicle's body footprint against the inside size and the set clearances; it does not model mirrors, open doors or turning.
Drawn by the designerOur closest starting plan
The 24x24 two-car garage
The classic two-car garage: a 16 x 7 ft door, a walk door and two windows on 9 ft walls. At 576 sq ft it can skip the frost-depth footing where the code exemption applies.
- Floor
- 576 sq ft
- Doors
- 16' x 7' overhead, walk door
- Walls
- 9 ft
- Checks
- 30 of 30 passed
About $11,900 in materials, before sales tax, delivery, labor and site work: $7,420.00 at shelf prices plus $4,485.00 estimated from published ranges. 30 of 30 automated checks passed · 4 external items remain. Local approval not checked. 1 item for your builder or engineer: seismic design category.
Close by:20x20 two-car garage, 400 sq ft24x30 two-car garage, 720 sq ft
All 8 plans, drawn to the same scale
8 starting designs
Browse the plans by cars and size.
Cars
Floor area
Showing all 8 plans.
1 car12x22 one-car garage
264 sq ft, 9 ft walls, 9' x 7' overhead, walk door
- Floor
- 264 sq ft
- Doors
- 9' x 7' overhead, walk door
- Trusses
- 12 at 2'
28 of 28 automated checks passed · 4 external items remain. Local approval not checked. 1 item for your builder or engineer: seismic design category.
Materials about $7,600
1 car14x24 one-car garage
336 sq ft, 9 ft walls, 9' x 7' overhead, walk door
- Floor
- 336 sq ft
- Doors
- 9' x 7' overhead, walk door
- Trusses
- 13 at 2'
30 of 30 automated checks passed · 4 external items remain. Local approval not checked. 1 item for your builder or engineer: seismic design category.
Materials about $8,600
2 cars20x20 two-car garage
400 sq ft, 9 ft walls, 16' x 7' overhead, walk door
- Floor
- 400 sq ft
- Doors
- 16' x 7' overhead, walk door
- Trusses
- 11 at 2'
28 of 28 automated checks passed · 4 external items remain. Local approval not checked. 1 item for your builder or engineer: seismic design category.
Materials about $9,500
- 2 cars
Your finder pick
24x24 two-car garage
576 sq ft, 9 ft walls, 16' x 7' overhead, walk door
- Floor
- 576 sq ft
- Doors
- 16' x 7' overhead, walk door
- Trusses
- 13 at 2'
30 of 30 automated checks passed · 4 external items remain. Local approval not checked. 1 item for your builder or engineer: seismic design category.
Materials about $11,900
2 cars24x30 two-car garage
720 sq ft, 9 ft walls, 9' x 7' overhead, 9' x 7' overhead, walk door, workbench along the back wall
- Floor
- 720 sq ft
- Doors
- 9' x 7' overhead, 9' x 7' overhead, walk door
- Trusses
- 16 at 2'
36 of 36 automated checks passed · 4 external items remain. Local approval not checked. 1 item for your builder or engineer: seismic design category.
Materials about $15,300
3 cars24x36 three-car garage
864 sq ft, 9 ft walls, 9' x 7' overhead, 9' x 7' overhead, 9' x 7' overhead, walk door
- Floor
- 864 sq ft
- Doors
- 9' x 7' overhead, 9' x 7' overhead, 9' x 7' overhead, walk door
- Trusses
- 19 at 2'
40 of 40 automated checks passed · 4 external items remain. Local approval not checked. 1 item for your builder or engineer: seismic design category.
Materials about $19,400
2 cars30x30 two-car garage
900 sq ft, 10 ft walls, 9' x 7' overhead, 9' x 7' overhead, walk door, storage attic on fixed stairs
- Floor
- 900 sq ft
- Doors
- 9' x 7' overhead, 9' x 7' overhead, walk door
- Trusses
- 16 at 2'
36 of 36 automated checks passed · 4 external items remain. Local approval not checked. 1 item for your builder or engineer: seismic design category.
Materials at least $18,600
3 cars30x40 three-car garage
1,200 sq ft, 10 ft walls, 16' x 7' overhead, 9' x 7' overhead, walk door, workbench along the back wall
- Floor
- 1,200 sq ft
- Doors
- 16' x 7' overhead, 9' x 7' overhead, walk door
- Trusses
- 21 at 2'
38 of 38 automated checks passed · 4 external items remain. Local approval not checked. 1 item for your builder or engineer: seismic design category.
Materials about $23,200
Need another size?
Any width from 12 to 36 ft and length from 16 to 40 ft, with the doors, windows and loads you set.
Design your own size
No starting plan matches both filters. The designer draws any size in between.
| Plan | Cars | Floor | Walls | Doors | Trusses | Materials, about | Build time | Checks |
|---|---|---|---|---|---|---|---|---|
| 12x22 | 1 car | 264 sq ft | 9 ft | 9' x 7' overhead, walk door | 12 at 2' | $7,600 | 65 to 95 h | Passed, 1 for your builder |
| 14x24 | 1 car | 336 sq ft | 9 ft | 9' x 7' overhead, walk door | 13 at 2' | $8,600 | 75 to 110 h | Passed, 1 for your builder |
| 20x20 | 2 cars | 400 sq ft | 9 ft | 16' x 7' overhead, walk door | 11 at 2' | $9,500 | 75 to 110 h | Passed, 1 for your builder |
| 24x24 | 2 cars | 576 sq ft | 9 ft | 16' x 7' overhead, walk door | 13 at 2' | $11,900 | 85 to 130 h | Passed, 1 for your builder |
| 24x30 | 2 cars | 720 sq ft | 9 ft | 9' x 7' overhead, 9' x 7' overhead, walk door | 16 at 2' | $15,300 | 125 to 185 h | Passed, 1 for your builder |
| 24x36 | 3 cars | 864 sq ft | 9 ft | 9' x 7' overhead, 9' x 7' overhead, 9' x 7' overhead, walk door | 19 at 2' | $19,400 | 145 to 215 h | Passed, 1 for your builder |
| 30x30 | 2 cars | 900 sq ft | 10 ft | 9' x 7' overhead, 9' x 7' overhead, walk door | 16 at 2' | $18,600 | 135 to 195 h | Passed, 1 for your builder |
| 30x40 | 3 cars | 1,200 sq ft | 10 ft | 16' x 7' overhead, 9' x 7' overhead, walk door | 21 at 2' | $23,200 | 155 to 230 h | Passed, 1 for your builder |
Each row is the starting plan as drawn, for 30 psf of ground snow, 115 mph of wind and a 36 in frost line. Materials are rounded: shelf prices plus the estimated trusses and concrete, before sales tax, delivery, labor and site work. Each plan page keeps the shelf prices, the estimate and the exact sum apart. Build time is total labor hours; a crew of two puts in about 16 a day. Passed means the preliminary checks passed for those loads; local approval is not checked.
Plans by cars
Start from what it will park.
Collections compare their plans side by side: what each size costs, what its doors and headers need and how to choose between them.
Detached garage plans
Five sizes from 20x20 to 30x40, each on its own slab, with the lot-line distance checked.
5 plans
2 car garage plans
One wide door or two single doors, from a compact 20x20 to a 24x30 with a bench.
3 plans

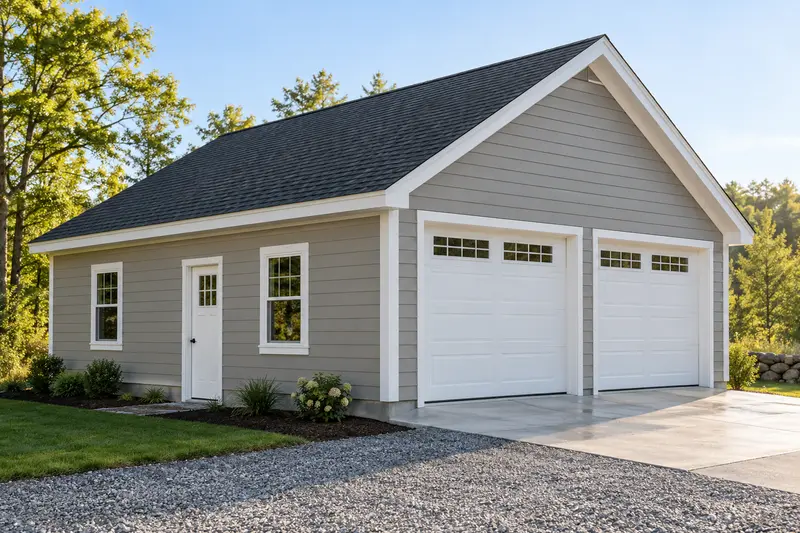

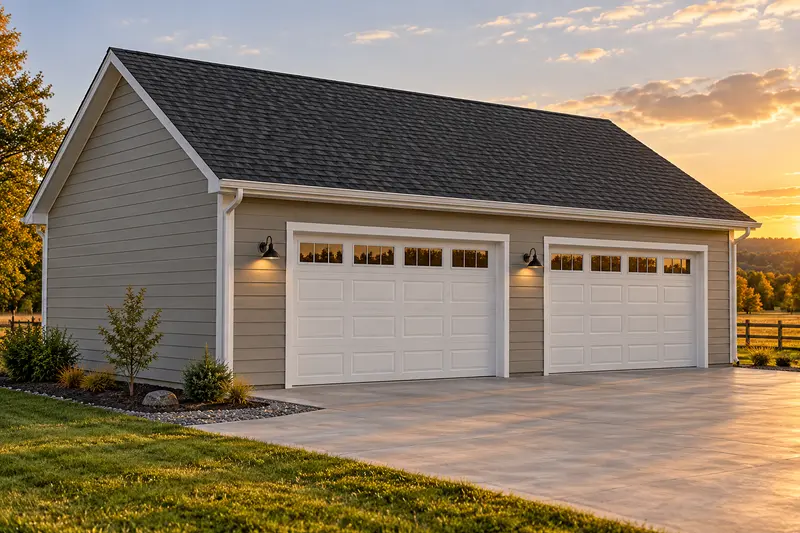

Photos are illustrations of garages like these, not the plans as drawn.

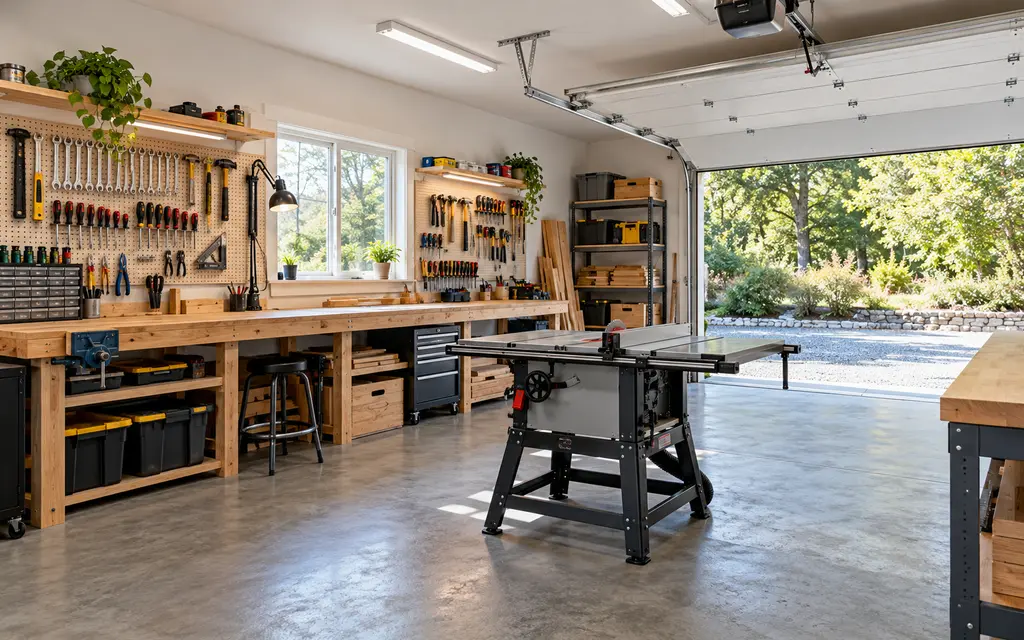

Loft and workshop
Storage overhead or a bench in the back.
The $79 builder's plan
See a real plan before you buy.
These are sheets from the 34-sheet plan for the 24x24 garage. Yours is drawn from the garage you design, for one payment. Designing, checking and pricing it is free.
Free
- The design in 3D, and every change you make to it
- Every preliminary check, with its rule
- The materials list priced line by line
- A summary PDF of the design and its checks
$79 once
- The dimensioned layout
- Every wall framed, with openings and heights
- The roof frame
- The cut list, the shopping list with store prices and the build, step by step
You check out in the designer, with your design loaded. If the plan has an error, we fix it or refund you within 30 days. Guarantee terms.
Real sheets from the 34-sheet sample plan for the 24x24 garage
01Foundation and slab
02Complete before construction
03Build steps
04Shopping list
Questions
Anything else? Write to us or read the guides.
Questions about garage plans
That is the floor of our 30x40 garage: 1,200 sq ft with a 16' x 7' ft door and a second door on the long wall, drawn for three cars, or two cars and a workbench along the back wall. How the cars fit depends on your vehicles; the designer checks the doors and the headers, and each vehicle's body footprint against the set clearances, not mirrors, open doors or turning.
Each of the 8 plans opens in the designer, free: the slab and footing, the wall framing with its headers, the trusses and the roof, checked for 30 psf of ground snow, 115 mph of wind and a 36 in frost line. Every plan has a materials list priced line by line at dated store prices, from about $7,600 for the 12x22 to about $23,200 for the 30x40, before sales tax, delivery, labor and site work. The $79 builder's plan adds the dimensioned sheets, the cut list and the shopping list for the design you finish. Start from the 24x24 or any other size.
Your garage, your numbers
Size it for your loads before you pour a slab.
Start from any of the 8 plans or a blank size. Change the width, the length, the walls, the doors and your snow and wind; the headers, the trusses and the materials list follow every change.
